Vontron BWRO Membrane Low Pressure

Low pressure Series is primarly used in desalination of brackish water. This series feautures low operating pressure, high permeate flow and rejection. It has high performance in rejecting soluble salt, TOC and Sio2, and can be widely applied in pure water prodcution in electricity and electronic industries.

• Industrial pure water production for example: electric power, steel, chemical industry, etc.
• Desalination of drinking water, for example: pure water, packaged water.

• Maximum Operating Pressure psi (MPa) : 600 (4.14)
• Maximum Feedwater Temperature (°C): 45
• Maximum Inlet Flow Rate m3/h: 17
• Maximum concentration of free chlorine mg/L: 0.1
• Maximum pressure drop per element psi (MPa): 15(0.1)
• Allowed pH range for feedwater in operation: 2-11
• Allowed pH range for chemical cleaning: 1-13
• Maximum feedwater flow SDI15: 5

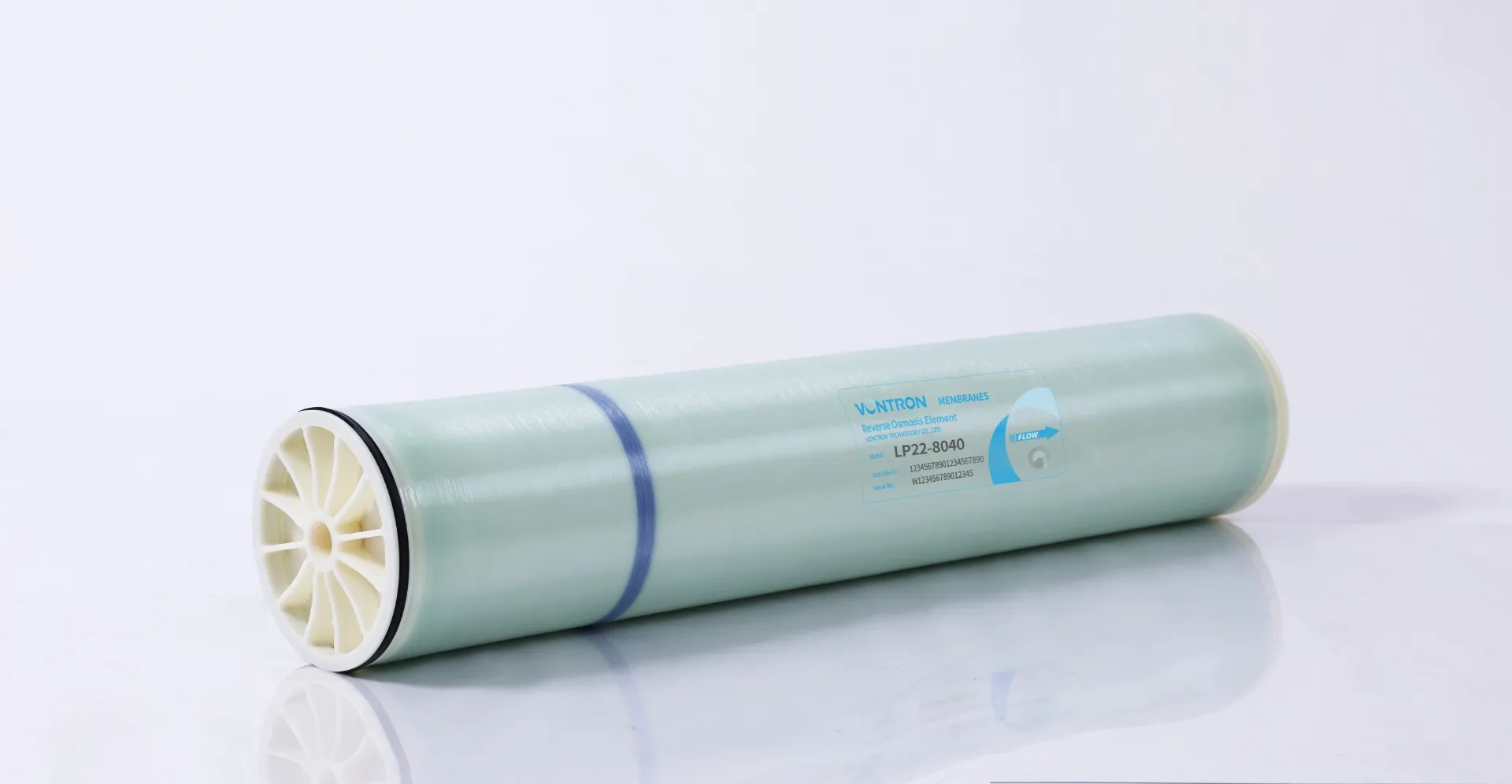

Model: LP22-8040

Stable Rejection Rate: 99.7%

Permeate Flow GPD (m3/day): 10500 (39.7)

Active Membrane Area ft2 (m2): 400 (37.2)

Feed Spacer Thickness mil: 28
